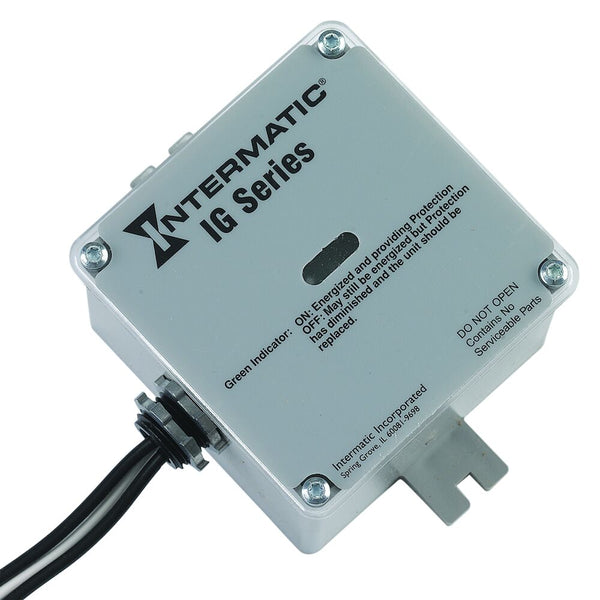

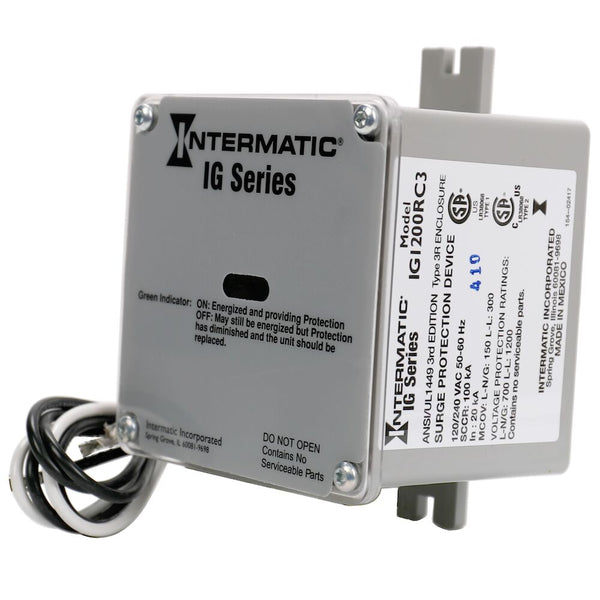

The IG1200 Surge Protective Device (SPD) is designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology.
- Three modes of surge protection
- TPMOV® surge protection technology
- Green LED indicator provides status of protection
- Type 3R rainproof enclosure for indoor/outdoor applications in plastic
- 3-year product warranty
- $7,500 connected equipment warranty on appliances and electronics
- UL Listed to ANSI/UL 1449 5th edition
| urge Protection Type | 1, 2 | Enclosure Type | Outdoor type 3R plastic |
| CA Prop 65 Message | Please see the Warning @ www.P65Warnings.ca.gov | California Proposition 65 | DEHP |
| Color | Gray | Connected Equipment Warranty Period | 3-Year limited |
| Country of Origin (Intermatic) | MEXICO | CSA Certification | cCSAus SPD Type 1, cCSAus SPD Type 2 |
| Maximum Continuous Operating Voltage (L-L) | 300 | Maximum Continuous Operating Voltage (L-N) | 150 |
| Maximum Surge Current Rating Per Phase | 50 kA | Modes of Protection | 3 (L1-N, L2-N, L1-L2) |
| Nominal Discharge Current | 20 kA | Phase | Single |
| RoHS Certification | X | Short Circuit Current Rating | 100 kA |
| Surge Protection LED Indicator | Green | Surge Protection Technology | TPMOV® |
| UL Standard | ANSI/UL 1449 5th Edition | Voltage | 120/240 VAC Single-Phase |
| Voltage Protection Rating (L1-N/G) | 700 | Voltage Protection Rating (L-L) | 1200 |
| Warranty Period | 3-Year limited | Wire Size Max | #12 AWG, Tinned Copper |

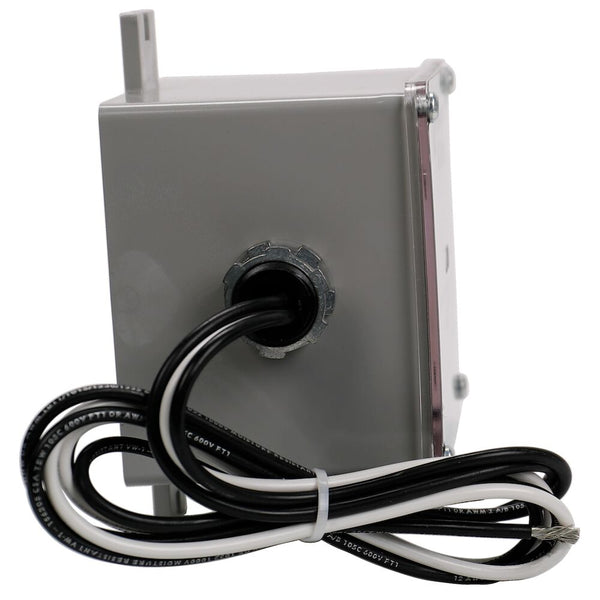

| Wiring Option | Wire leads | Operating Temperature Max (°C) | 85 |
| Operating Temperature Max (°F) | 185 | Operating Temperature Min (°C) | -35 |
| Operating Temperature Min (°F) | -31 | Product Depth (in) | 3.438 |
| Product Depth (mm) | 87.3 | Product Height (in) | 4.1875 |
| Product Height (mm) | 106.4 | Product Width (in) | 4.1875 |
| Product Width (mm) | 106.4 | Unit Carton Height (in) | 7.501 |
| Unit Carton Length (in) | 6.251 | Unit Carton Weight (lb) | 1.098 |
| Unit Carton Width (in) | 3.751 |
